Engaging Front-Wheel Drive

Front-wheel drive can be engaged and disengaged in all gears (forward and reverse), on-the-go and under load without using the clutch.

NOTE: Disengage front-wheel drive before driving at high speed on public roads.

NOTE: When braking with both brake pedals together, front-wheel drive cuts in automatically regardless of the position selected at the front-wheel drive switch. The front-wheel drive indicator light comes on.

With Headland Management System HMS (if equipped):

Besides the "on" and "off" functions, this system also has an automatic position. When "automatic" is selected, front-wheel drive switches itself off automatically whenever tractor speed exceeds 23 km/h (14.3 mph).

When tractor speed drops below 21 km/h (13 mph), front-wheel drive switches itself on automatically again.

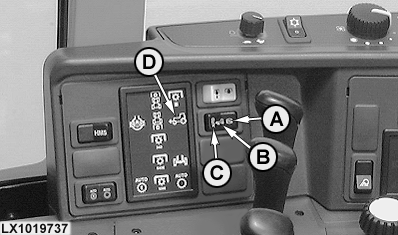

LX1019737


A-Front-wheel drive disengaged
B-Front-wheel drive engaged
C-Automatic position
D-Indicator light comes on when front-wheel drive is engaged

OULXE59,0010692 -19-21SEP04-1/1
