Rear Wheel Tread Adjustment With Flanged Axle

IMPORTANT: The distance between the side wall of the tire and the fender must not be less than 50 mm (1.97 in.).

The distance between the running surface (edge) of the tire and the fender must not be less than 60 mm (2.36 in.).

Die Spurweite kann durch Versetzen oder Umdrehen der Felgen verstellt werden. Additional tread widths can be achieved by using spacers.

In addition the complete wheel can be installed on the other side of the tractor. In doing so, maintain the direction of tire rotation.

After adjustment has been completed tighten wheel retaining bolts to specified torque (see Section "Break-In Period").

The relationship of the rear wheel disk and rim in obtaining the different tread settings is shown in the following drawings. A study of these drawings before attempting to change tread setting will save time and unnecessary labor.

IMPORTANT: After adjusting wheel tread, retighten all wheel attaching nuts after 4 and 8 hours of operation. Check tightness of these nuts frequently during the next 100 hours of operation.

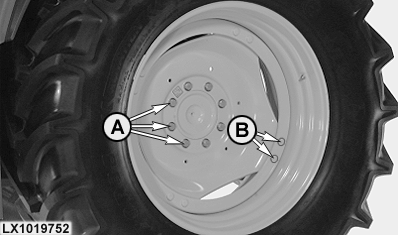

A-500 N·m (370 lb-ft)
B-250 N·m (185 lb-ft)
