Super Comfort Seat

To adjust the seat upward, raise it until it clicks into place (maximum of 3 detent positions). To adjust downward, raise the seat to the stop position and then lower it.

IMPORTANT: Shut off engine before swivelling the seat. Accidental contact with the controls could cause the tractor or implement to operate.

If the seat is equipped with a swivel (optional equipment), this is operated by means of lever (G) as follows:

Lift the lever up. The seat turns 200° to the left and 20° to the right. The seat locks at 10° intervals.

As a further option, the seat may be equipped with the same type of swivel described at "Air Comfort Seat".

To lower the armrest through 30°, press the armrest tilt adjuster (E) into the armrest.

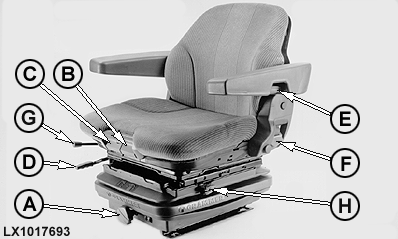

A-Crank for adjusting seat to suit operator's weight
B-Lever for seat tilt adjustment¹
C-Lever for adjusting the cushion position¹
D-Fore-and-aft adjustment
E-Armrest tilt adjustment
F-Backrest tilt
G-Lever for swivel movement¹
H-Lever for fore/aft spring¹

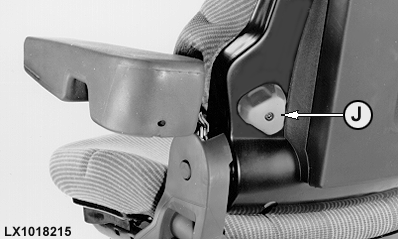

J-Lumbar support adjustment

OULXE59,00107E3 -19-26JUL05-1/1
