Replacing the LTC coolant pump fuse (Tractors equipped with IVT transmission)

The fuse for the LTC coolant pump is on the right side of the engine block.

F22-30-amp LTC coolant pump

IMPORTANT: To prevent damage to the electrical system, never use a fuse with a rating higher than the one already installed.

Open the hood.

Take cover (A) off the fuse.

Replace fuse (B).

Put the cover back on the fuse.

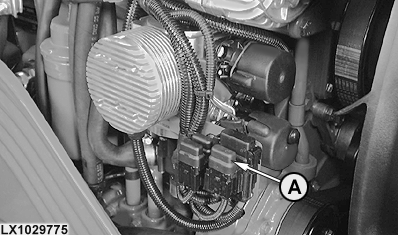

A-Fuse covers

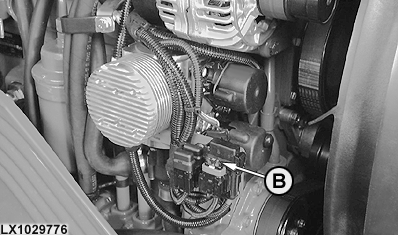

B-Fuse F22 for LTC coolant pump (IVT transmission)

OU12401,0000D44 -19-01MAR03-1/1
