Light Switches (Tractors Without Cab)

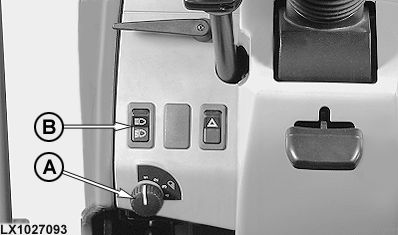

Light switch (A) can be set to the following positions:

1-Light switch in "off" position

2-Headlights, tail lights and warning lights "on"

3-Headlights "on"

4-Headlights "on" and

• work light "on" if tractor is equipped with one work light only
• work lights can be switched on if tractor is equipped with more than one work light

Switch (B) can be set to the following positions:

• Switch down = Low beam
• Switch up = High beam

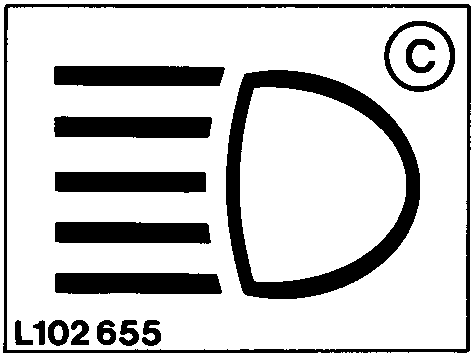

Indicator light (C) will glow when switch (B) is in "high beam" position.

OU12401,0000EEF -19-01JUL03-1/1
