Neutral Start Circuit
Tractors with SyncroPlus transmission:
1.
Depress clutch pedal.
2.

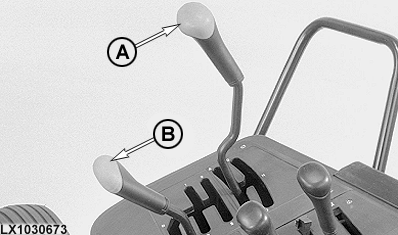

Move range shift lever (A) to neutral.
3.
Move gear lever (B) to any gear.
4.
Turn key in main switch as far as it will go to the right. The starter must NOT turn over. If it does, see your John Deere dealer immediately.
5.
Repeat the test in all the other gears.
|
|
|
|
OU12401,0000F2D -19-01JUL03-1/5
|
Tractors with Power Reverser transmission:
1.
Depress clutch pedal.
2.
Move range shift lever (A) to neutral.
3.
Move the reverse drive lever (B) to any travel direction (forward or reverse).
4.
Turn key in main switch as far as it will go to the right. The starter must NOT turn over. If it does, see your John Deere dealer immediately.
5.
Repeat the test in the other direction of travel.
|
|
|
|
OU12401,0000F2D -19-01JUL03-2/5
|
Tractors with PowrQuad transmission:
1.
Depress clutch pedal.
2.
Move range shift lever (A) to neutral.
3.
Move reverse drive lever (B) to the "forward" position.
4.
Turn key in main switch as far as it will go to the right. The starter must NOT turn over. If it does, see your John Deere dealer immediately.
5.
Repeat the test in the "reverse" position.
|
|
|
|
OU12401,0000F2D -19-01JUL03-3/5
|
Tractors with PowrQuad Plus transmission / AutoQuad Plus transmission:
1.
Move range shift lever (A) to neutral.
2.
Move reverse drive lever (B) to "forward" or "reverse".
3.
Start the engine and wait 6-7 seconds. The "N" display must light up.
4.
Depress the clutch and engage any range. Gradually release the clutch pedal. The tractor must NOT start to move. If it does, see your John Deere dealer immediately.
|
|
|
|
OU12401,0000F2D -19-01JUL03-4/5
|
Tractors with IVT transmission:
1.

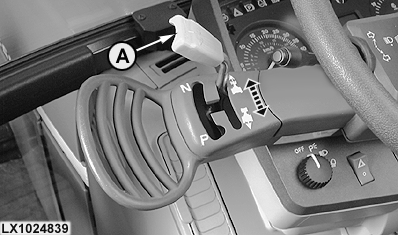

Move reverse drive lever (A) to "forward" or "reverse".
2.
Turn key in main switch as far as it will go to the right. The starter motor must NOT turn over. If it does, see your John Deere dealer immediately.
3.
Repeat the test in the other direction of travel.
|
|
|
|
