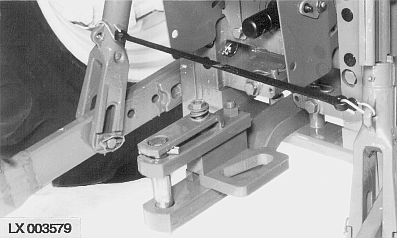

Swinging Drawbar

The swinging drawbar is used to pull drawn equipment of all types, particularly PTO-driven implements.

The drawbar hitch point is located so as to increase the rear axle load and at the same time slightly reduce load on the front axle.

Besides having a variable swinging range, the drawbar can also be adjusted lengthwise.

Maximum permissible drawbar loads are stated in the "Specifications" section.

NOTE: Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer (see "Service / Every 500 Hours").

OU12401,00010A5 -19-28APR04-1/1
