Coupler Hook › Center Link

These center links are intended for Category II and Category III implement balls.

IMPORTANT: The ball used must be of the correct size.

Category Diameter of ball (A)
II 50 mm (2.0 in.)
III 60 mm (2.4 in.)

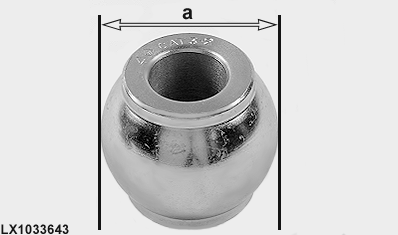

A-Diameter of ball

LX1033643

OU12401,00010B8 -19-06MAY04-1/2

How to use the coupler hook

The coupler is operated by means of lever (A), which can be actuated either by hand or by a control cable.

IMPORTANT: Make absolutely certain that the coupler hook is locked properly:

Lever (A) must be in proper contact with the coupler hook, there must be no play noticeable at ball (B) and pin (C) must enclose the ball.


A-Lever
B-Ball
C-Pin

LX1033636

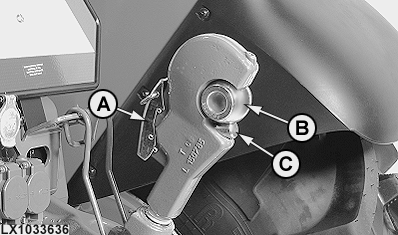

Coupler hook operated by hand

LX1033637

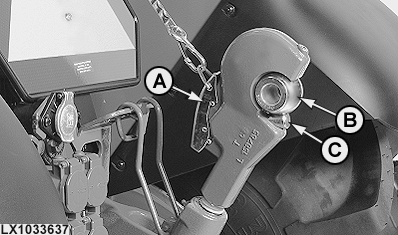

Coupler hook operated by means of a control cable
