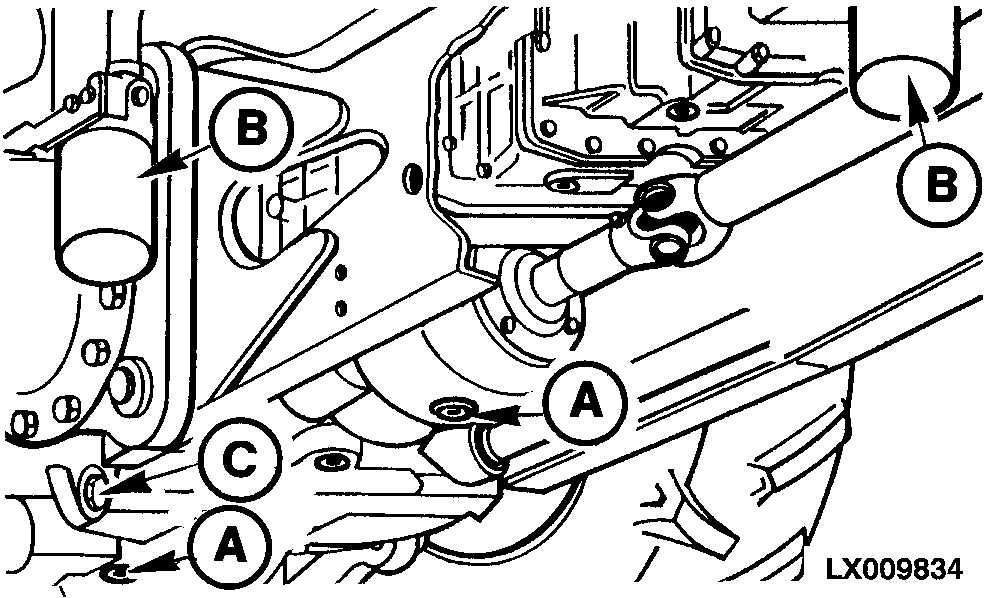

Changing Transmission/Hydraulic Oil (Tractors NOT Equipped with IVT)1. Start engine and operate several hydraulic functions to heat up oil.2. Park tractor so that it is level. Lower draft links and front-mounted implements. 3. Stop the engine and remove the key. 4. Shift transmission to "PARK". 5. Remove drain screws (A). 6. Replace transmission/hydraulic oil filter elements (B). 7. Remove plug (C), pull out intake screen and wash in fuel. 8. Before refilling with fresh oil, reinstall intake screen and tighten drain screws to 50 N·m (35 lb-ft). 9. Add transmission/hydraulic oil to the transmission case. |
|
| Capacities: | |
|---|---|
| SyncroPlus transmission with 12/4 gears...52 liters (13.7 U.S.gal.) | |
| SyncroPlus transmission with Power Reverser with 16/16 gears...52 liters (13.7 U.S.gal.) | |
| PowrQuad and PowrQuad Plus transmission with 16/16 gears...49 liters (12.9 U.S.gal.) | |
| PowrQuad Plus and AutoQuad Plus transmission with 24/24...50 liters (13.2 U.S.gal.) | |
| Extra for creeper transmission...1 liter (0.3 US.gal.) | |
| Extra for front-wheel drive...3 liters (0.8 US.gal.) | |
| Extra for TLS-axle...3 liters (0.8 US.gal.) |
|
Run engine briefly and operate hydraulic functions. Stop the engine. Wait for between 10 and 15 minutes before checking the oil level. It should be between the marks on the dipstick. If not, correct oil level. |
