Engaging Front Wheel Drive

Front wheel drive can be engaged and disengaged in all gears (forward and reverse), on-the-go and under load without using the clutch.

NOTE: Disengage front wheel drive before driving at high speed on public roads.

NOTE: When the brakes are applied (both pedals pressed), front wheel drive cuts in automatically regardless of the position selected at the front wheel drive switch. The FWD indicator light comes on.

WITH HEADLAND MANAGEMENT SYSTEM HMS (if equipped):

Besides the "on" and "off" functions, this system also has an automatic position. When "automatic" is selected, front wheel drive switches itself off automatically whenever tractor speed exceeds 23 km/h (14.3 mph).

When tractor speed drops below 21 km/h (13 mph), front wheel drive switches itself on automatically again.

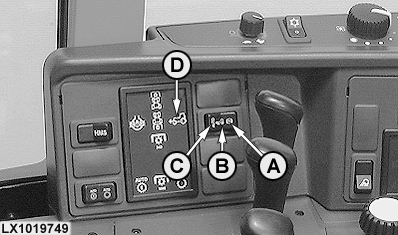

A-Front wheel drive disengaged
B-Front wheel drive engaged
C-Automatic position
D-Light comes on when FWD is engaged

OU12401,00010EA -19-25AUG04-1/1
