Checking the Fuel Filter

2. Retighten both screws as soon as water and sediment deposits have drained out.

3. Turn key in main switch to the right as far as the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 20 seconds.

If water was present in fuel filter, then use a 1/2-inch square-section key to slacken off the drain screw (B) under the fuel tank by one turn. After draining off any water deposits, retighten drain plug until it is hand-tight.

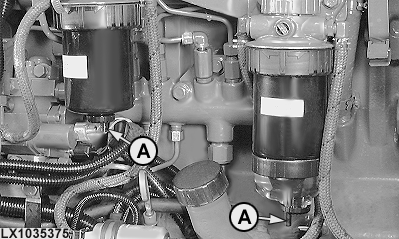

A-Drain screw

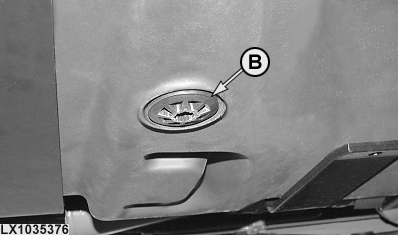

B-Drain screw(fuel tank)

OU12401,00010ED -19-25AUG04-1/1
