Adjusting Front Wheel Tread With Adjustable Rims
|
|
Front wheel tread can be adjusted by replacing or reversing the wheel rims. In addition the complete wheel can be reversed and installed on the opposite side of the tractor. The arrow |
on side wall of tire must then point in the direction of forward travel.
NOTE: Wheel tread on tractors equipped with a front loader must not exceed 1.80 m (71 in.). |

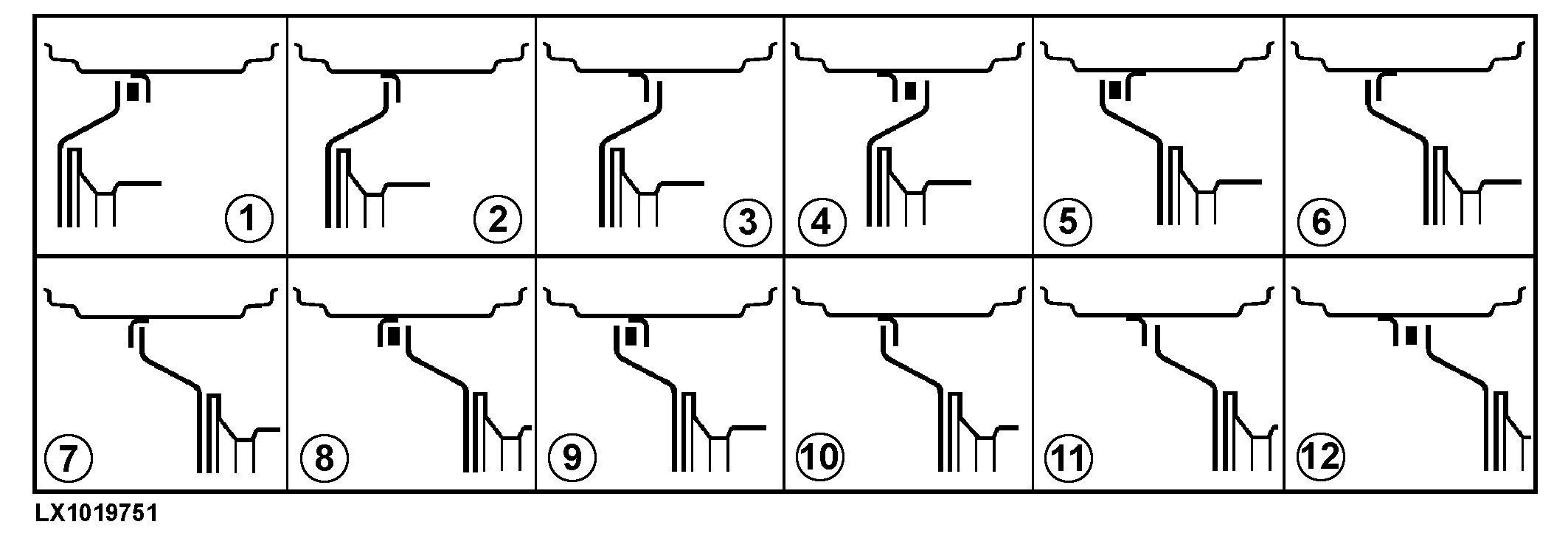

| Positions of rims, wheel disks and spacers |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
| mm | 1524 | 1552 | 1584 | 1616 | 1720 | 1748 | 1782 | 1812 | 1924 | 1952 | 1984 | 2016 |
| (in.) | (60.0) | (61.1) | (62.4) | (63.6) | (67.7) | (68.8) | (70.2) | (71.3) | (75.7) | (76.9) | (78.1) | (79.4) |
| Tire size: | ||||||||||||
| 12.4-24 | x | x | x | x | x | x | x | x | x | x | x | x |
| 13.6-24 | x | x | x | x | x | x | x | x | x | x | x | x |
| 14.9-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 16.9-24 | - | - | - | x | x | x | x | x | x | x | x | x |
| 11.2-28 | x | x | x | x | x | x | x | x | x | x | x | x |
| 12.4-28 | x | x | x | x | x | x | x | x | x | x | x | x |
| 13.6-28 | - | - | - | x | x | x | x | x | x | x | x | x |
