Check Tow Hook on Pick-Up Hitch for Wear

causym CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

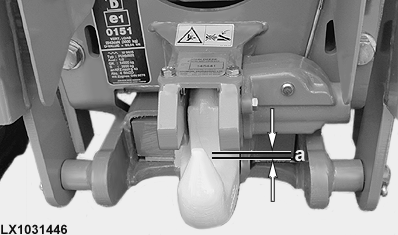

Check gap (a) at catch.

Specification

Gap at catch -Maximum permissible clearance 10.0 mm 0.39 in.

LX1031446

LX24888,00005D0 -19-13NOV06-1/2

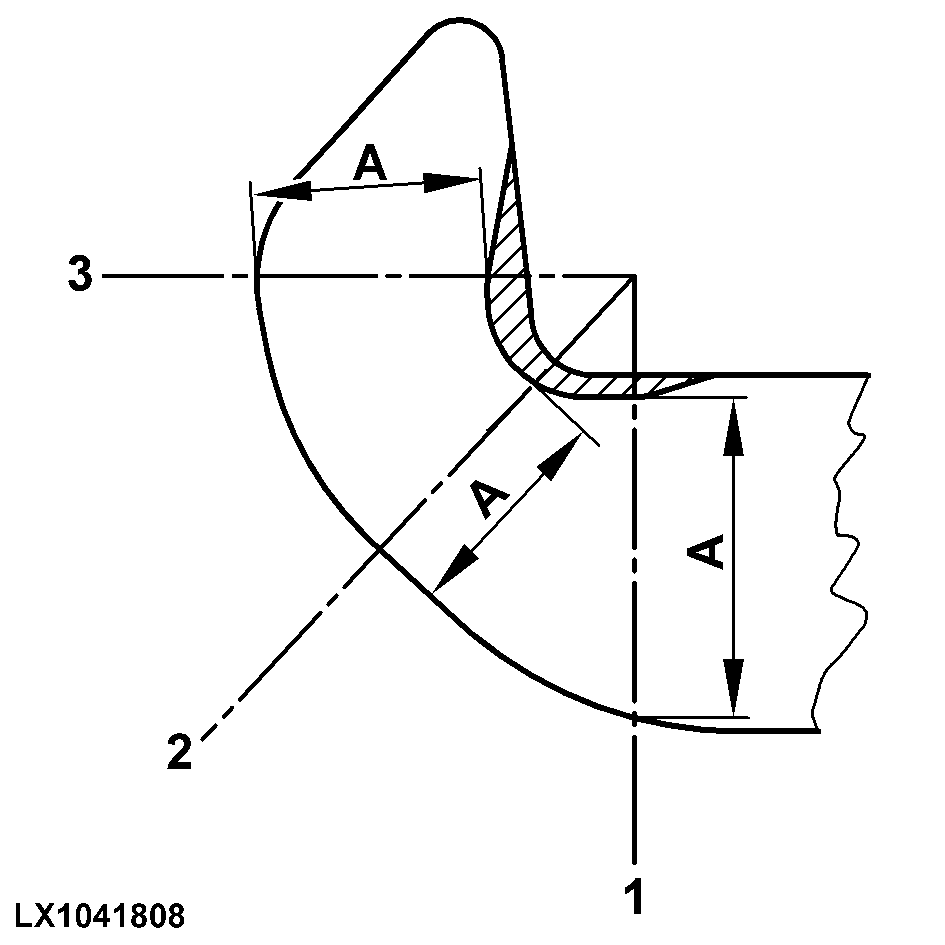

Read the "D" value (unit of measurement = kN) from pick-up hitch type plate.

If the "D" value indicated on the type plate is 65 or less, observe the following minimum dimensions (A).

Specification

Tow hook, hook diameter (D = 65 or less) -Minimum value (A), diameter 1 43.5 mm 1.71 in.
Minimum value (A), diameter 2 42.0 mm 1.65 in.
Minimum value (A), diameter 3 40.5 mm 1.59 in.

If the "D" value indicated on the type plate exceeds 65, observe the following minimum dimensions (A).

Specification

Tow hook, hook diameter (D = more than 65) -Minimum value (A), diameter 1 45.0 mm 1.77 in.
Minimum value (A), diameter 2 43.5 mm 1.71 in.
Minimum value (A), diameter 3 42.0 mm 1.65 in.

LX1041808

LX24888,00005D0 -19-13NOV06-2/2
