Checking the Manually-Operated Hitch for Wear (Italy and Spain Only)
 CAUTION:
Parts that have reached or exceeded their wear limit must be replaced with new parts.

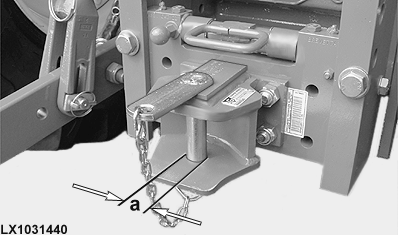

Check diameter (a) of the hitch pin.

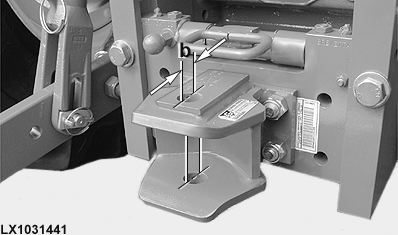

Check diameter (b) of the receiver hole.
Specifications for hitch pins with a nominal diameter of 28.0 mm (1.10 in.)
Specification
|
Hitch pin
-Wear limit or minimum diameter
|
26.5 mm
|
1.04 in.
|
Specification
|
Top and bottom receiver holes (measured in direction of travel)
-Wear limit or maximum permitted diameter
|
31.0 mm (oval)
|
1.22 in. (oval)
|
Specifications for hitch pins with a nominal diameter of 43.0 mm (1.69 in.)
Specification
|
Hitch pin
-Wear limit or minimum diameter
|
41.0 mm
|
1.61 in.
|
Specification
|
Top and bottom receiver holes (measured in direction of travel)
-Wear limit or maximum permitted diameter
|
46.0 mm (oval)
|
1.81 in. (oval)
|
|
