Adjusting the Steering Wheel

To adjust the angle of the steering wheel, pull lever (A), move steering wheel to desired angle and release the lever.

If only the lever is pulled, the steering wheel will rise to its highest position.

To adjust height, pull lever (B) to the rear. Push the lever forward when the adjustment is completed.

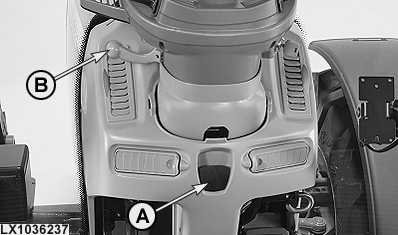

A-Lever for tilting the steering wheel
B-Lever for adjusting the height of the steering wheel

OU12401,0001225 -19-23AUG05-1/1
