Adjusting the Height of Access Step

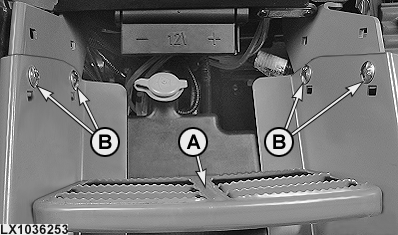

The height of step (A) can be adjusted.

Take out screws (B). Move access step to desired position. Put screws (B) back in.

NOTE: If the rear tires have an index radius of 820 mm (32.3 in.) or over, the step must be set at the bottom position.

A-Access step
B-Screws

OU12401,000122E -19-25MAY05-1/1
