Levers for Mechanical Selective Control Valves

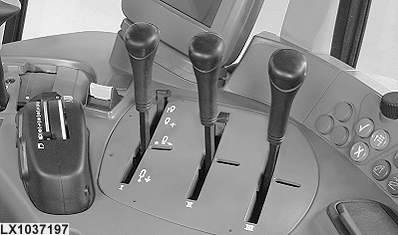

The control lever has four settings.

The remote cylinder retracts when the lever is moved to the Retract position.
The remote cylinder extends when the lever is moved to the Extend position.
The remote cylinder is held in place when the lever is in Neutral.
When the lever is in the Float position (i.e. piston moves freely inside remote cylinder), the mounted implement follows the ground contours.

NOTE: If additional external valves are used, move the control lever to neutral when shutting off each hydraulic function.

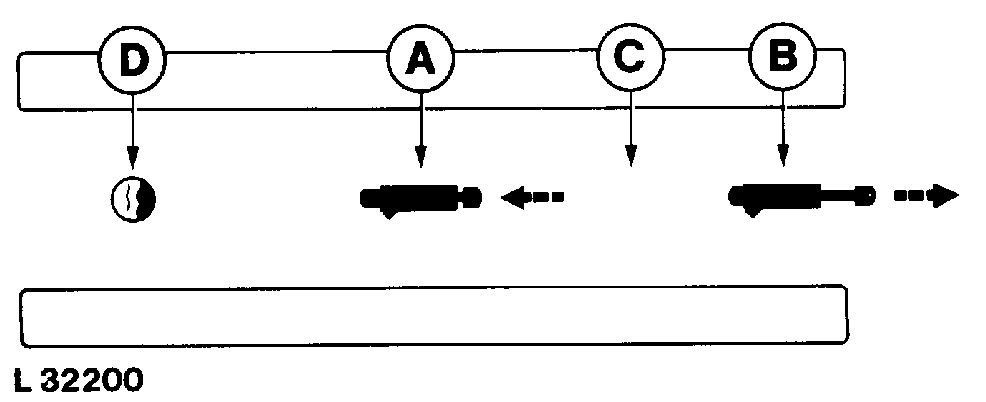

A-Retract
B-Extend
C-Neutral position
D-Float position
