Multi-Function Lever

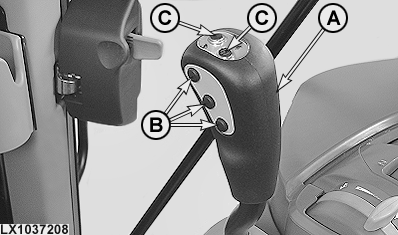

Multi-function lever (A) permits two SCVs to be operated at the same time. Buttons (B) enable other functions to be carried out.

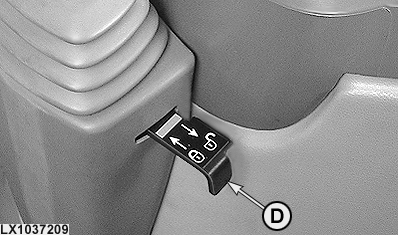

Gear-shift switches (C) allow the gears at the transmission to be shifted. Slide control (D) locks the lever.

Pulling lever (A) back raises the front loader. Pushing the lever forward until resistance is reached lowers the front loader. If the lever is pushed forward beyond the resistance, it engages in a detent and the front loader is in its float position.

Moving the lever to the left makes the loader bucket curl up. Moving the lever to the right makes the loader bucket dump.

A -Multi-function lever
B-Buttons for 3rd, 4th and 5th functions
C-Gear-shift switches
D-Transport lock slide control
