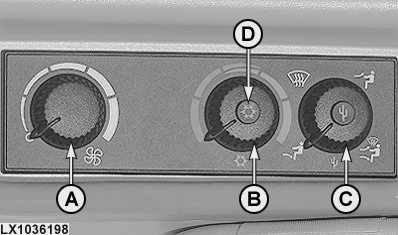

Heater and Air-Conditioning Controls (Tractors without ClimaTrak System)

A-Fan switch
B-Heater and air-conditioning regulator
C-Airflow regulator
D-Air-conditioning switch

OU12401,0001401 -19-13MAY06-1/1
