Quick-Coupling (Hook-Type) Center Link

This center link is intended for Category II and Category III implement balls.

IMPORTANT: The ball must be the correct size.

Hitch Category Ball diameter (a)
II 50 mm 2.0 in.)
III 60 mm 2.4 in.)

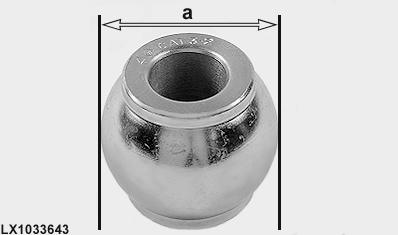

LX1033643

OU12401,0001406 -19-13MAY06-1/2

How to use the coupler hook

The coupler is operated by means of lever (A), which can be actuated either by hand or by a control cable.

IMPORTANT: Make certain that the coupler hook is locked:

Lever (A) must be in contact with the coupler hook, there must be no play noticeable at ball (B), and pin (C) must enclose the ball.


A-Lever
B-Ball
C-Pin

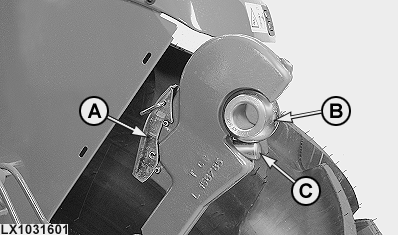

LX1031601

Coupler hook operated by hand

LX1031602

Coupler hook operated by means of a control cable
