Stabilizer Bar (If Equipped)

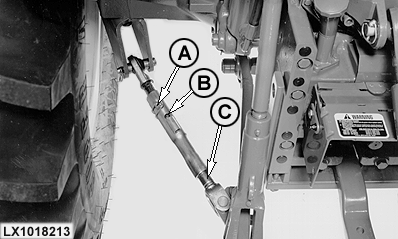

The bar can be adjusted to suit any category by means of pin (A) and/or threaded rod (B). Alternative bolt position (C) also alters the category. The different categories are marked on the threaded rod by grooves.

LX1018213

OU12401,0001407 -19-13MAY06-1/2

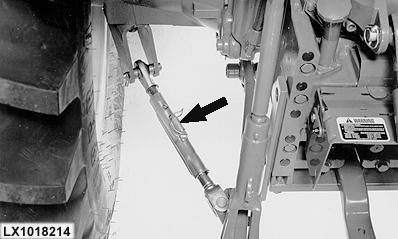

If pin (A) is not required (it must be removed to allow the draft links to sway), it can be stored in the tubular retainer.

LX1018214

OU12401,0001407 -19-13MAY06-2/2
