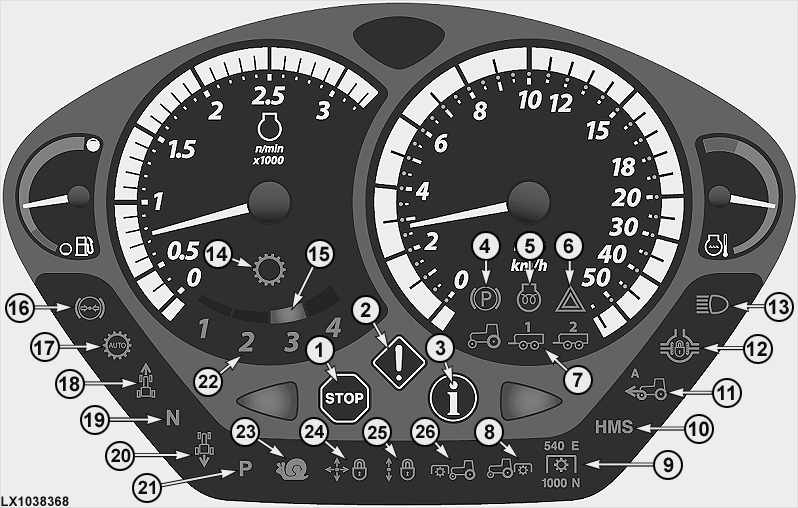

1-The red "STOP" light flashes when a serious malfunction occurs. Switch off the engine IMMEDIATELY and determine the cause (review the error message in the "CommandCenter").

2-The yellow "CAUTION" light flashes when a malfunction occurs (review the error message in the "CommandCenter"). This light also flashes if the handbrake is applied with the engine running and the reverser lever set to any position other than neutral.

3-The blue "INFO" light comes on when there is a fault in an electrical component associated with the hydraulic system or transmission. See your John Deere dealer.

4-The handbrake indicator light glows when handbrake is applied and engine is running. In addition, an acoustic warning signal may be installed.

5-This light comes on when the main (key) switch is turned one position to the right. Wait till the light goes out before starting the engine.

6-This flashing warning light comes on when the hazard warning lights are selected.

7-The flashing indicator lights (for tractor and trailer(s), if any) start flashing when turn-signal or hazard warning lights are switched on.

8-This light comes on when the rear PTO is selected.

9-These lights indicate which rear PTO speed is selected.

10-This light comes on when HMS Plus is selected.

11-This light comes on when front-wheel drive is selected. When front-wheel drive is in its automatic mode, the letter "A" also lights up.

OU12401,0001420 -19-10JUN06-1/4

12-This light comes on when the differential lock is engaged.

13-The high beam indicator light will glow whenever the headlights are switched on at high beam.

14-With PowrQuad Plus or AutoQuad Plus transmission, this light comes on together with a number that indicates which gear is selected.

15-These illuminated sectors indicate the setting for "highest possible gear" (with AutoQuad Plus transmission).

16-On tractors with air brakes, this light comes on if air pressure is not sufficient to operate with a trailer.

17-This light comes on whenever the automatic mode of an AutoQuad Plus or AutoPowr / IVT transmission is activated.

18-This light comes on when the reverser lever is in "forward" position.

19-This light comes on when the reverser lever is in "neutral" position.

20-This light comes on when the reverser lever is in "reverse" position.

21-This light comes on when the reverser lever is in "park" position (with AutoPowr / IVT transmission).

22-With PowrQuad Plus or AutoQuad Plus transmission, figures 1-4 indicate which gear is selected.

23-This light comes on when the AutoPowr / IVT transmission is in creeper mode.

24-This light comes on whenever the transport lock of the electrical multi-function lever is activated.

25-This light comes on whenever the transport lock of the electronic selective control valves is activated.

26-This light comes on when the front PTO is engaged.

Bulb test: As the engine is started, all the lights should glow for approx. 1 second. If not, a defective bulb or blown fuse may be the cause. Check and replace parts as necessary.

The indicator lights should go out as soon as the engine is running.

NOTE: Travel speed can be displayed in km/h or MPH. This setting can be made at the CommandCenter. In this section, see the "Units of measurement" screen in "CommandCenter settings".

OU12401,0001420 -19-10JUN06-2/4

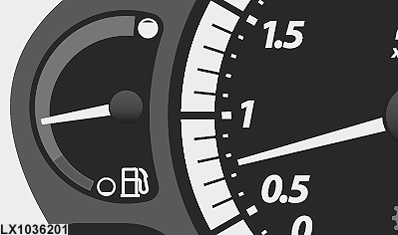

The fuel gauge shows the amount of fuel in the tank, from "full" to "empty" (end of red). When the indicator needle enters the red, there are still approx. 35 liters (9.2 U.S. gal.) remaining.

NOTE: Never run the tank completely dry, otherwise you will have to bleed the fuel system.

OU12401,0001420 -19-10JUN06-3/4

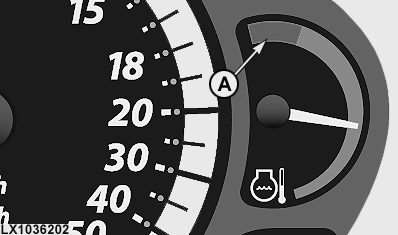

If the coolant gauge needle moves into the red (A), the engine is overheating. Immediately reduce load or shift to a lower gear. If the needle remains in the red, shut off engine and determine cause of overheating (coolant level low, dirty radiator or dirty radiator screen).

OU12401,0001420 -19-10JUN06-4/4
