Checking Oil Level in MFWD Final Drives

causym CAUTION: If the oil is hot, it may be under pressure. Unscrew the level plug slowly.

1. Turn the wheel until "OIL LEVEL" mark (A) is horizontal.

2. Remove level plug (B). Oil should be level with screw bore.

3. If necessary, top up axle at this point. Tighten level plug to 150 N·m (110 lb-ft). Always use a transmission oil listed in the "Fuel, Lubricants, Hydraulic Oil and Coolant" section.

NOTE: Change oil in axle housing and final drives after the first 100 hours of operation. Then change after every 1500 hours of operation or once every 2 years, whichever occurs first.

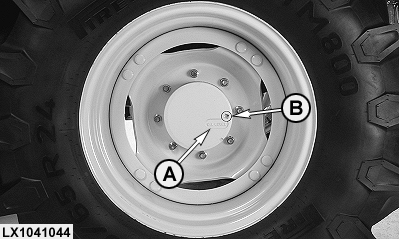

LX1041044


A-Mark
B-Level plug
