Windshield Wiper and Washer System

Windshield wiper rotary switch (A) has four positions:

• 0 = off
• --- = Intermittent wipe
• 1 = Slow wipe
• 2 = Fast wipe

The windshield washer is operated using switch (B).

Rear window wiper lever (C) has three positions:

• 0 = off (lever to rear)
• 1 = Intermittent wipe (lever centered)
• 2 = Constant wipe (lever to front)

The rear window washer system is operated by pulling the lever toward the steering wheel.

Add anti-freeze solution to water in reservoir (D) if temperature is liable to drop below freezing point.

The windshield and rear window washer systems both have an automatic wipe/wash function: if the washer is actuated for longer than 0.5 seconds, the wiper operates in conjunction with the washer pump and then wipes for 8 seconds after the pump has switched off. After a 5-second delay, the wiper comes on once more.

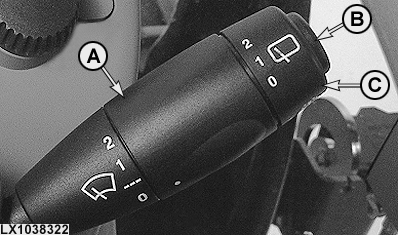

A-Rotary switch for windshield wiper
B-Switch for windshield washer
C-Lever for rear window wiper

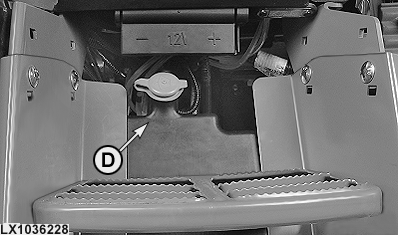

D-Reservoir for washer
