Adjusting Rate of Implement Drop

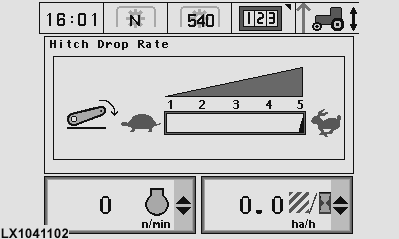

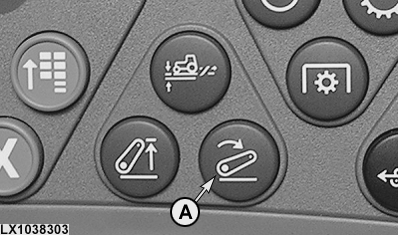

Button (A) is used to select this screen. There, you can set the rate at which mounted implements will drop.

The rate-of-drop varies with this setting and the weight of the mounted implement. The heavier the implement, the faster the rate-of-drop and the lighter the implement, the slower the rate-of-drop.

OU12401,00014C3 -19-07JUL06-1/1
