Check Remote Controlled Hitch for Wear

causym CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

Check diameters (a, b and c) of the hitch pin

Specification

Straight-sided hitch pin -Wear limit or minimum diameter (a) 29 mm 1.14 in.
Ball-shaped hitch pin -Wear limit or minimum diameter (b) 36 mm 1.42 in.
Ball-shaped hitch pin -Wear limit or minimum diameter (c) 27 mm 1.06 in.

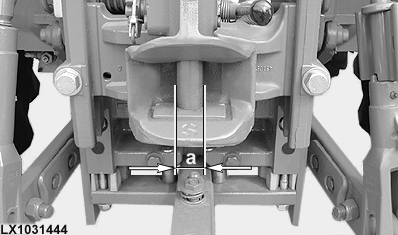

LX1031444

Straight-sided hitch pin

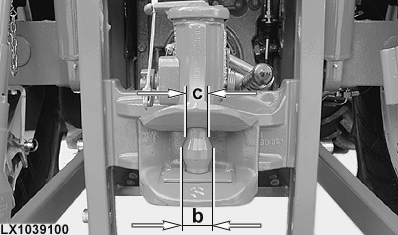

LX1039100

Ball-shaped hitch pin

OU12401,0001544 -19-09NOV06-1/3

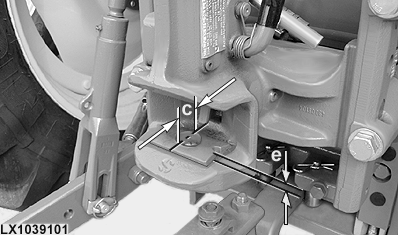

Check diameter (c) of the receiver hole.

Specification

Bottom receiver hole (in direction of travel) -Wear limit or maximum permitted diameter 34 mm (oval) 1.33 in. (oval)

Check thickness (e) of wear plate.

Specification

Wear plate -Wear limit or maximum permitted thickness (e) 6 mm 0.24 in.

LX1039101

OU12401,0001544 -19-09NOV06-2/3

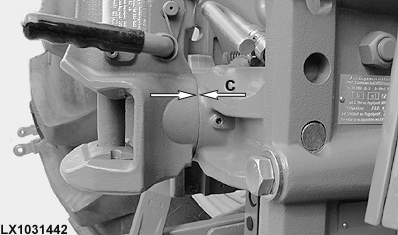

Determine play (c) between hitch and support.

Specification

Max. permissible play between hitch and support -Play 3 mm 0.12 in.

LX1031442

OU12401,0001544 -19-09NOV06-3/3
