Check for Wear at Ball-Type Tow Hitch

causym CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

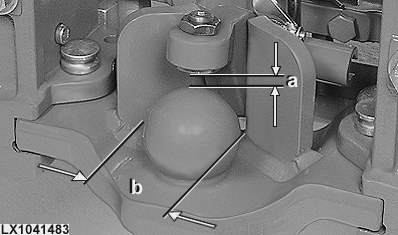

Check gap (a) at catch.

Specification

Gap at catch -Maximum permissible clearance 4.0 mm 0.16 in.

Check diameter (b) of the ball.

Specification

Ball diameter -Wear limit or minimum diameter 78.0 mm 3.07 in.

LX1041483

OU12401,0001545 -19-19DEC06-1/1
