Light Switches

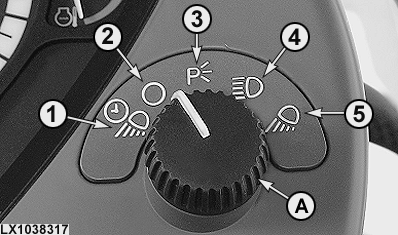

Light switch (A) can be set to the following positions:

  • 1 = Egress light "on"
  • 2 = Light switch in "off" position
  • 3 = Parking lights "on"
  • 4 = Headlights "on"
  • 5 = Headlights and worklights "on"

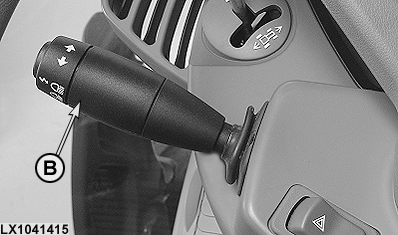

Switch headlights to "low beam" or "high beam" position by means of switch (B).

  • Pull switch toward steering wheel = Headlight flasher ("flash-to-pass")
  • Switch in center = Low beam
  • Push switch away from steering wheel = High beam

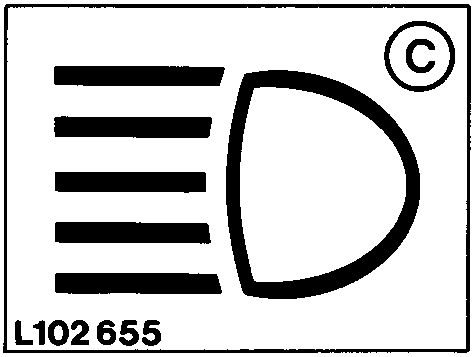

Indicator light (C) will glow when headlight switch is in "high beam" position.

NOTE: If the egress light is activated at the CommandCenter (see "Worklights" in this Section), the headlights and any worklights that are activated come on for several seconds if the light switch is turned briefly to position 1 once or several times.

Frequency of switch actuation
 Egress light "on" time
Once  90 seconds
Twice 120 seconds
Three times 150 seconds
Four times 180 seconds


LX1038317
LX1041415
L102655


A-Light switch
B-Switch for high-/low-beam headlights
C-High-beam indicator

OU12401,000158C -19-21NOV06-1/1
