Checking Transmission/Hydraulic System Oil Level

IMPORTANT: Check oil level when oil is cold. If possible, check the oil level in the morning after the tractor has been standing overnight.

1. Park tractor so that it is level.

2. Apply handbrake or engage park lock.

3. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

4. Oil level should be between marks (A) on the sight-glass. If it is not, add more oil at filler neck (B).


A-Sight-glass (l.h. side of transmission)

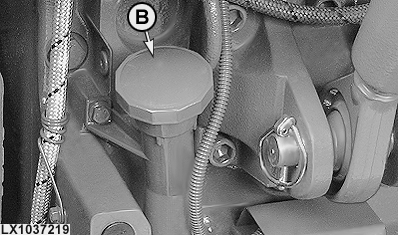

B-Filler neck
