Height-Adjustable Trailer Hitch

The tractor can be equipped with one of four different hitch versions (1-4) which are operated in different ways.

The height of all hitches can be adjusted using lever (A).

On hitch 1, lock button (B) must be pressed additionally.

The hitches can be opened and closed by means of lever (C).

Hitches 3 and 4 are closed when the trailer towing eye enters the hitch. Hitches 3 and 4 can also be operated from the operator's seat by means of a remote control.

Hitches 3 and 4 are locked when the indicator pin is flush with the housing.

IMPORTANT: Use only trailers with a towing eye that matches the hitch pin diameter.

Hitches that turn must never be used to tow trailers with tow-bars that turn in relation to the trailer.

Maximum permissible static vertical loads and towable loads are stated in the "Specifications" section.

NOTE: Hitch components that are subject to wear have to be checked every 250 hours (see "Service / Every 250 Hours"). Replace them if necessary.

A-Height adjustment lever
B-Lock button
C-Actuating lever

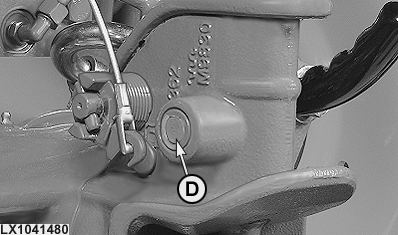

D-Indicator pin
