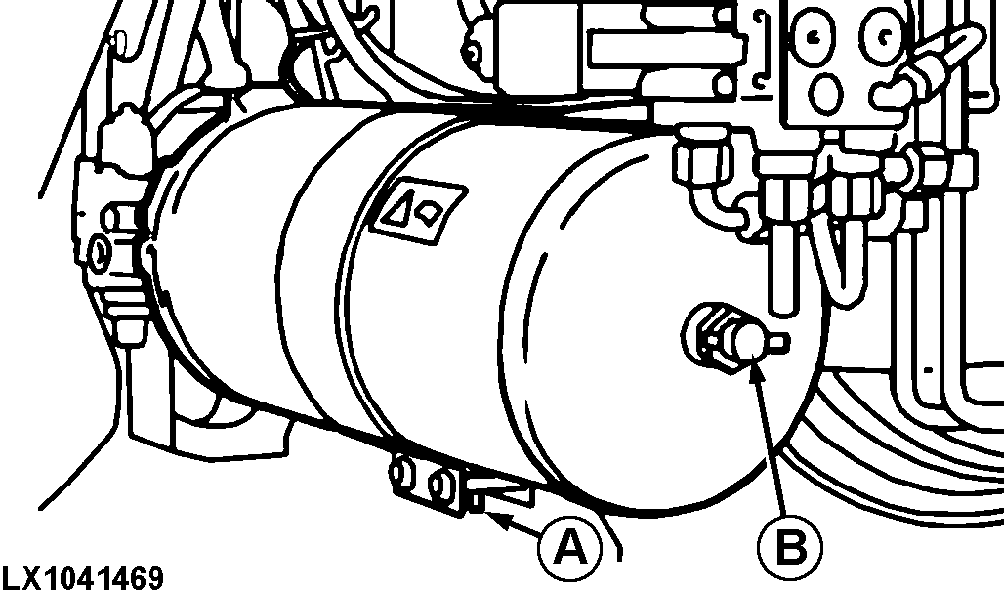

Pull ring (A) to drain water from the air tank.
The air tank is also equipped with a connection (B) for inflating tires.
CAUTION: The full pressure of the air tank (800 kPa; 8 bar; 116 psi) is present at the tire inflation connection. Do NOT over-inflate the tires!
OU12401,00015CD -19-16DEC06-1/1
CAUTION:
The full pressure of the air tank (800 kPa; 8 bar; 116 psi) is present at the tire inflation connection. Do NOT over-inflate the tires!
