Changing Transmission/Hydraulic Oil (Tractors NOT Equipped with AutoPowr)

2. Park tractor so that it is level. Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

3. Shut off engine and remove the key.

4. Apply handbrake (transmission in neutral position).

5. Remove drain screws (A).

6. Replace transmission/hydraulic oil filter elements (B).

7. Remove screw-plug (C), pull out intake screen and wash in fuel. Clean the area where the intake screen is installed.

8. Before refilling with fresh oil, reinstall intake screen, replace seals and tighten drain screws to 50 N·m (35 lb-ft).

9. Add transmission/hydraulic oil to the transmission case. For capacities, see "Specifications".

Run engine briefly and operate hydraulic functions. Shut off engine.

Wait for between 10 and 15 minutes before checking the oil level. It should be between the marks on the sight-glass. If not, correct oil level.

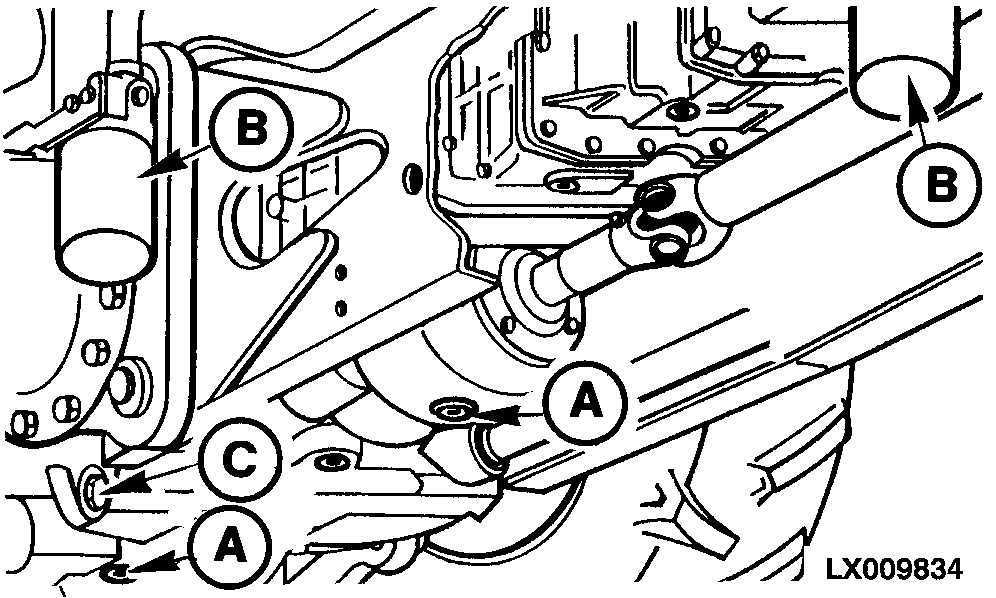

A-Drain screws
B-Transmission/hydraulic oil filters
C-Screw-plug

OU12401,000171F -19-02APR07-1/1
