HMS, Controls

NOTE: On all HMS pages, use the program switch (C) to toggle between the two programs.

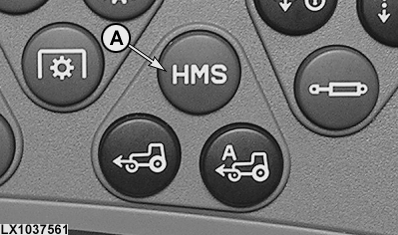

A-Button, HMS main page
B-HMS on/off
C-Program switch
D-HMS indicator light on dashboard

LX1037561
LX1044403

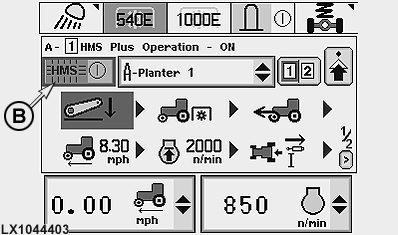

HMS main page

LX1041113

Switch, without CommandArm

LX1041387

Switch, with CommandArm

LX1041399

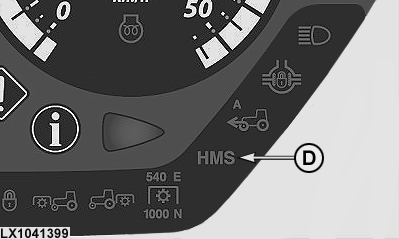

HMS indicator light on dashboard

OU12401,0001755 -19-28NOV07-1/1
