Coolant Level Check

If coolant temperature is too high, rectify the cause (dirty radiator, clogged screen, coolant level too low).

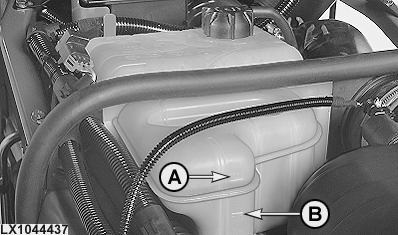

Coolant level should be close to the max. mark (A). It must under no circumstances fall below the min. mark (B).

A-Max. mark
B-Min. mark

OU12401,00018FC -19-04DEC07-1/1
