| Number |
Capacity (amps) |
Designation |

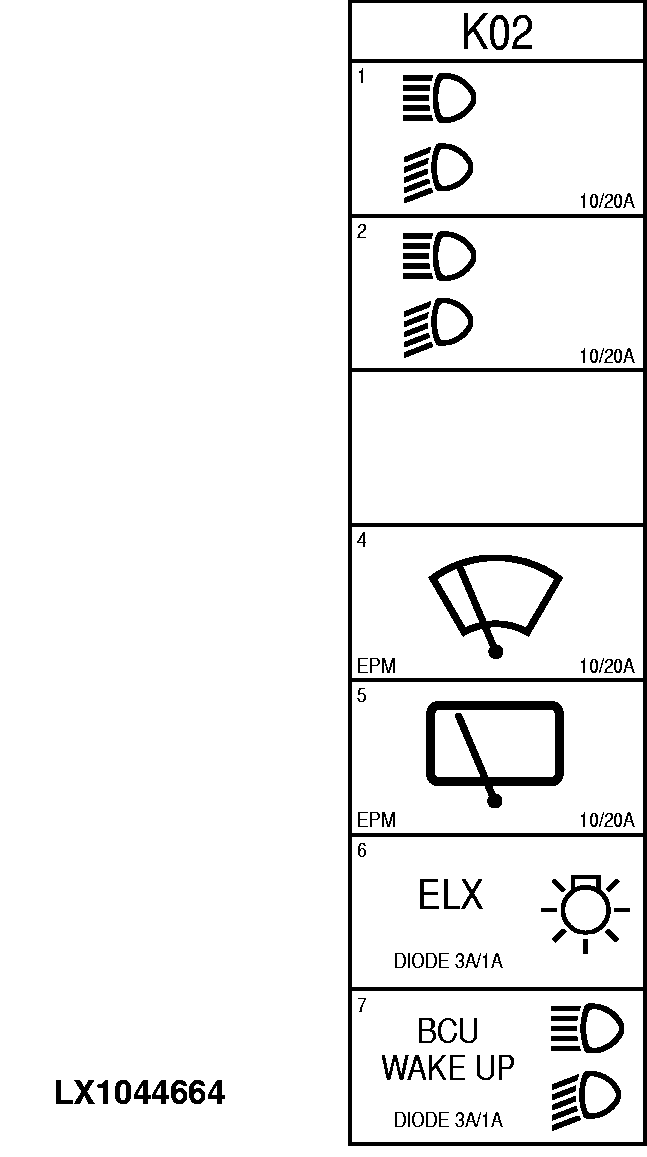

| K02/01 |
10/20 amps |
Relay for low/high beam headlights |
| K02/02 |
10/20 amps |
Relay for lights |
| K02/03 |
- |
Not used |
| K02/04 |
10/20 amps |
Relay for windshield wiper |
| K02/05 |
10/20 amps |
Relay for rear window wiper |
| K02/06 |
1 amp |
Diode for power supply to electronics |
| K02/06 |
3 amps |
Diode for lights |
| K02/07 |
1 amp |
Diode for low/high beam headlight relay |
| K02/07 |
3 amps |
Diode for power supply to control units PC0 and PC6, BCU activation |
