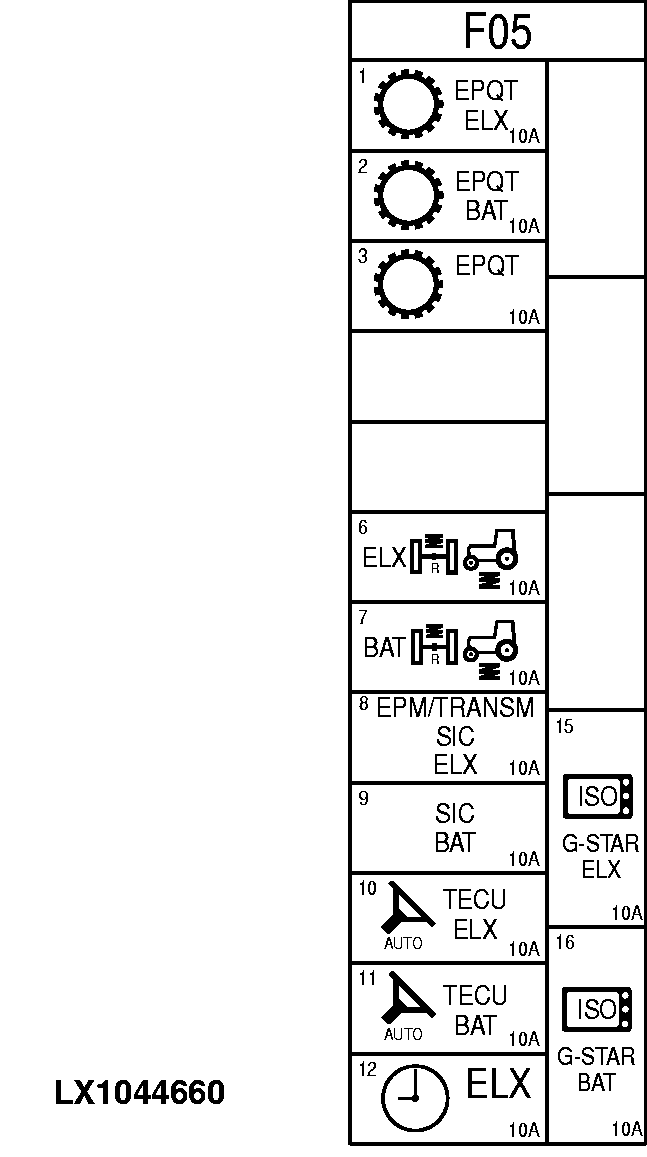

Fuses F05 (PowrQuad Transmission)
| Number |
Capacity (amps) |
Consumer |
| F05/01 |
10 amps |
EPC control unit |
| F05/02 |
10 amps |
EPC control unit |
| F05/03 |
10 amps |
EPC control unit (transmission speed sensor, hydraulic oil filter sensor) |
| F05/04 |
- |
Not used |
| F05/05 |
- |
Not used |
| F05/06 |
10 amps |
TSC control unit |
| F05/07 |
10 amps |
TSC control unit |
| F05/08 |
10 amps |
SIC control unit, PC5 control unit, CAN-BUS (E-SCV/E-ICV) |
| F05/09 |
10 amps |
SIC control unit |
| F05/10 |
10 amps |
TEC control unit, SSU control unit |
| F05/11 |
10 amps |
TEC control unit, SSU control unit |
| F05/12 |
10 amps |
Timer |
| F05/13 |
- |
Not used |
| F05/14 |
- |
Not used |
| F05/15 |
10 amps |
GreenStar |
| F05/16 |
10 amps |
GreenStar |
|
|
|
|
OU12401,0001920 -19-10DEC07-1/1
|
|
