Relays / Diodes K08 (AutoPowr/IVT)

Number Capacity (amps) Designation
K08/A 10/20 amps Fuel preheater relay
K08/B 1 amp Not used
K08/B 3 amps Diode for lights (SAE)
K08/C 10/20 amps Relay for GreenStar display
K08/D - Not used

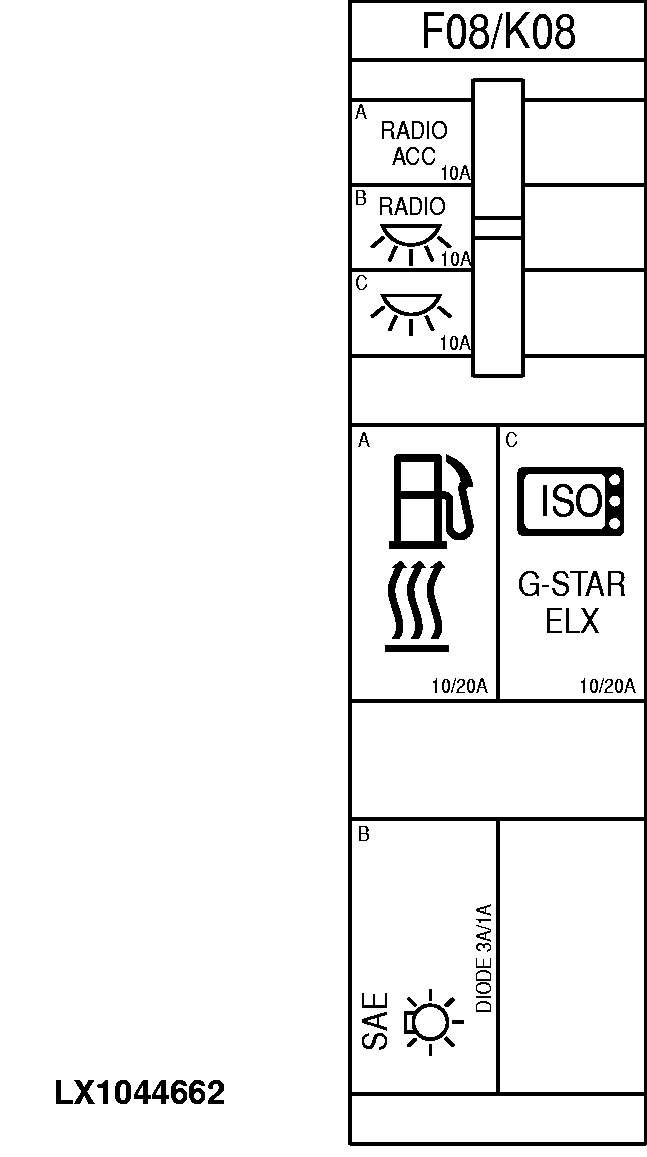

LX1044662

OU12401,000192D -19-10DEC07-1/1
