Hitch Remote Control

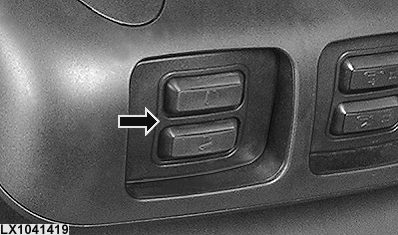

These switches allow the hitch to be operated from the fender. For safety reasons, the hitch rises and drops at a slower rate. The height and depth values are ignored.

Push upper switch - Raise implement

Push lower switch - Lower implement

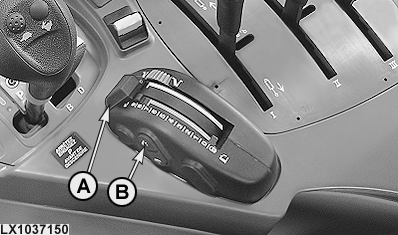

NOTE: Once the fender control has been activated, the hitch is prevented from moving accidentally. To prepare the hitch for operation again, either:

  • move hitch control (A) to the position that corresponds to the position of the draft links,

  • move control (A) to one of the end positions, or

  • actuate raise/lower switch (B).


A-Hitch control
B-Raise/lower switch

LX1041419
LX1037150

OU12401,000193F -19-11DEC07-1/1
