Direct Actuation

In the event of an electrical failure, the hitch can be actuated as follows:

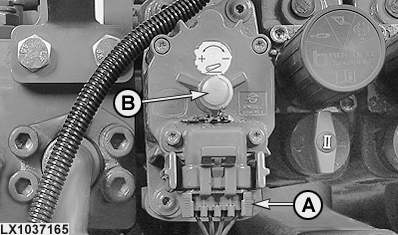

Pull out plug (A).

Run the engine. Take off protective cap (B).

From the operator's seat, turn the screw with a 3 mm (0.12 in.) hex. socket wrench until the three-point hitch is in the desired position.

See your John Deere dealer.

OU12401,0001942 -19-11DEC07-1/1
