Reduce Fuel Consumption

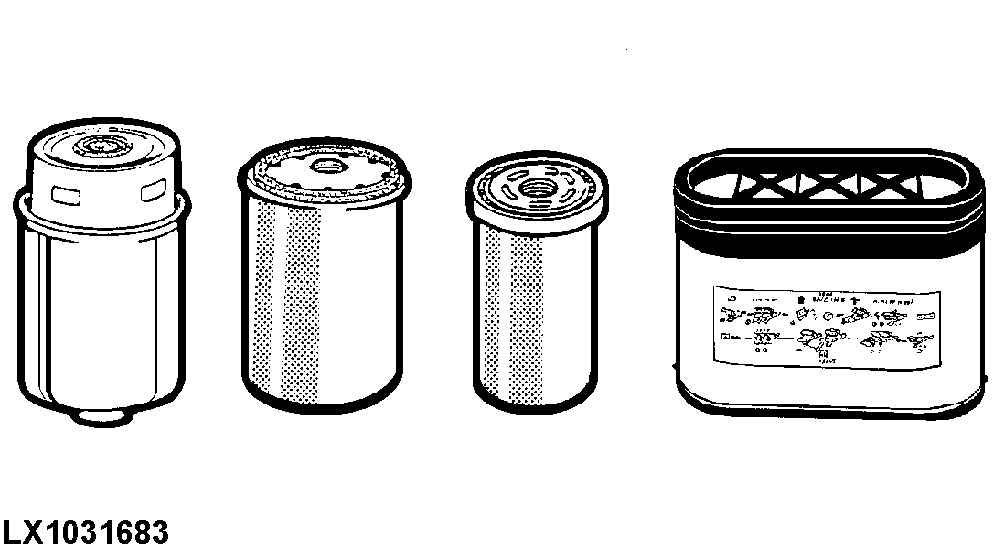

Replace air cleaner element and fuel, engine oil and transmission/hydraulic filter elements at specified service intervals (see "Service" section).

Use only John Deere filters!

OU12401,0001943 -19-11DEC07-1/7

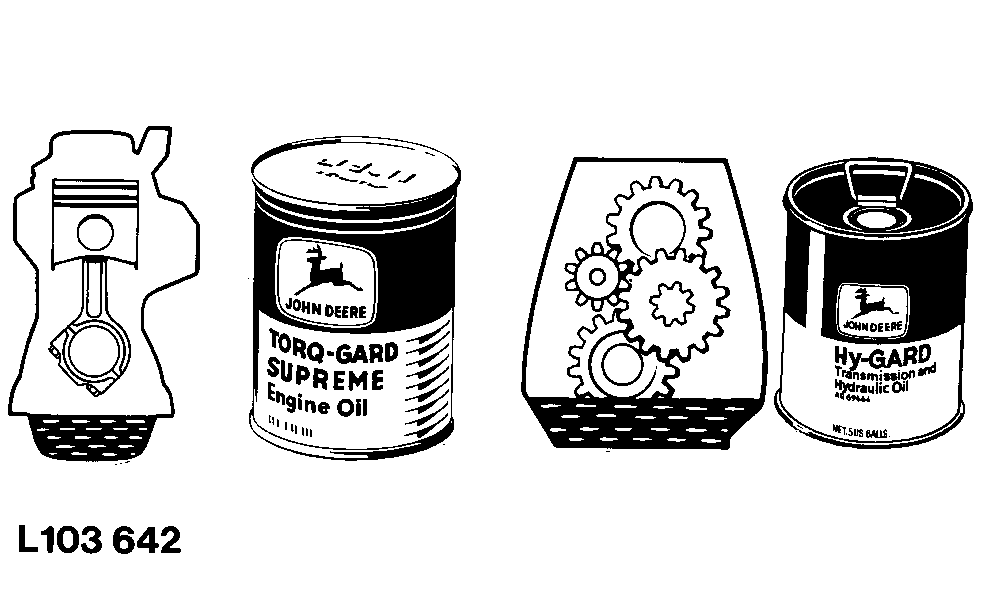

Use recommended oils and lubricants only (see "Fuel, Lubricants, Hydraulic Oil and Coolant" section).

OU12401,0001943 -19-11DEC07-2/7

Have the fuel system checked regularly by your John Deere dealer.

OU12401,0001943 -19-11DEC07-3/7

Have draft link control functions of the hitch checked regularly by your John Deere dealer.

OU12401,0001943 -19-11DEC07-4/7

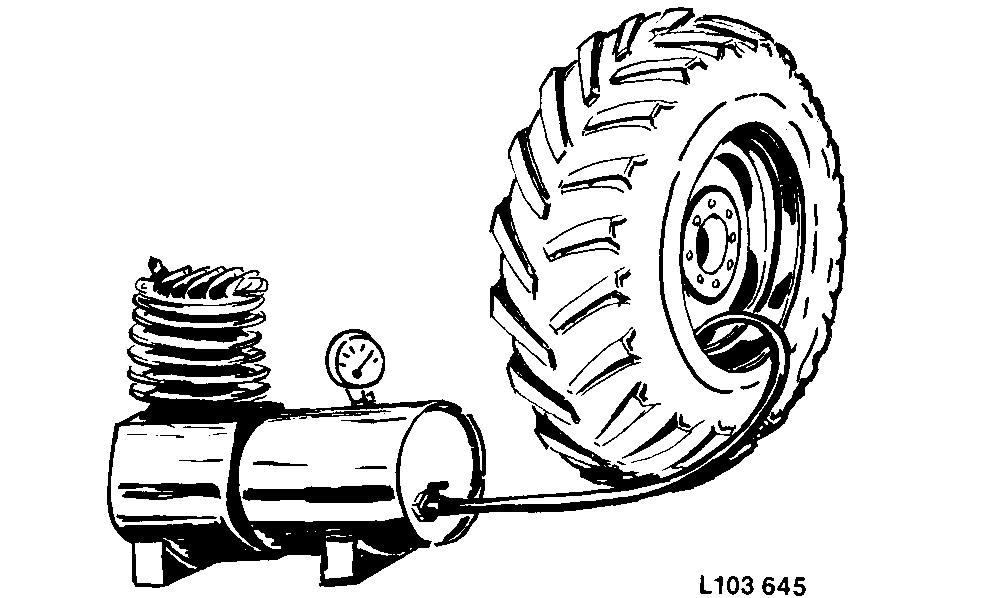

Adapt tire pressures to type of work and ground conditions (consult your John Deere dealer or local tire agent).

OU12401,0001943 -19-11DEC07-5/7

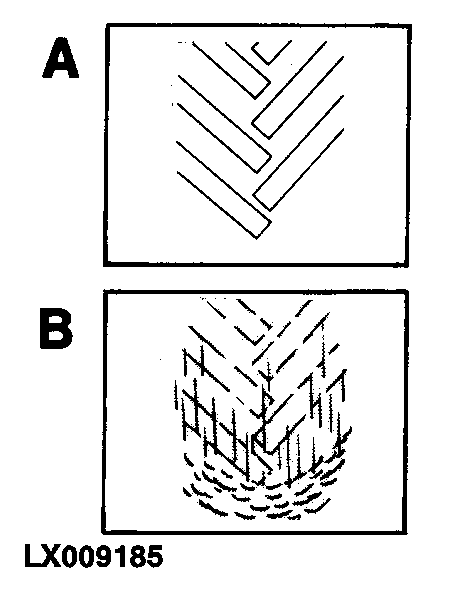

Choose ballast to obtain 10 to 15% wheel slip. Use no more ballast than necessary, reduce ballast for light work.

A-Too much ballast
B-Too little ballast
C-Correct ballast

OU12401,0001943 -19-11DEC07-6/7

Always drive in the highest possible gear with reduced engine speed.

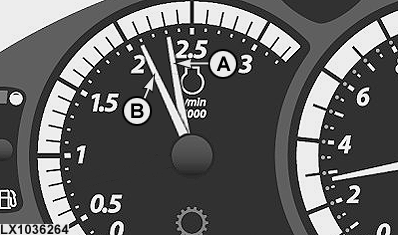

Choose a gear so that engine speed (A) with engine under no load drops 150 to 250 rpm when the tractor is operating with the engine under load (B).

NOTE: For light work, reduce engine speed below 2000 rpm. Select a gear so that engine speed drops 200 to 300 rpm when operating.

OU12401,0001943 -19-11DEC07-7/7
