Air Comfort Seat

There must be weight on the seat for it to be adjusted to suit the weight of the operator. Start the engine, allow the seat to settle, then pull lever (E) up briefly. The seat adjusts itself automatically to the weight of the operator.

2. Adjust height

After the weight adjustment has been made, the seat can be adjusted to any height. To adjust the height, pull lever (E) upward as high as it will go or push it down. If the top or bottom limit is reached during height adjustment, automatic height adjustment takes place to ensure a minimum amount of travel up and down (suspension).

3. Adjust fore/aft spring

• Lever (D) forward - no fore/aft suspension
• Lever (D) backward - fore/aft suspension

4. Adjust lateral spring

• Lever (G) forward - lateral suspension
• Lever (G) backward - no lateral suspension

Adjust swivel

The seat swivel is operated by means of lever (F) as follows:

Lifting the lever up allows the seat to turn 15° to the left and right. The seat can be locked at 7.5° intervals.

If equipped with a Premium Plus cab and armrest control console:

When driving the tractor, never swivel the seat beyond its 7.5° lock . Do not let the control console collide against the steering wheel.

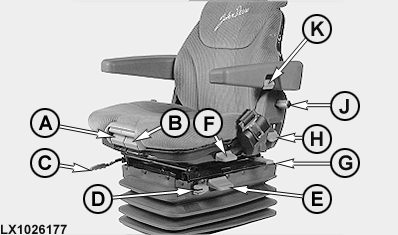

A-Lever for adjusting the cushion position¹
B-Lever for seat tilt adjustment¹
C-Fore-and-aft adjustment
D-Lever for fore/aft suspension
E-Height adjustment
F-Lever for swivel movement
G-Lever for lateral suspension
H-Backrest tilt
J-Armrest height adjustment
K-Armrest tilt adjustment

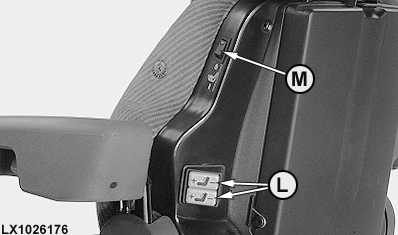

L-Pneumatic lumbar support adjustment
M-Seat heater switch¹

OU12401,00019A4 -19-03JUN08-1/2

IMPORTANT: Shut off engine before swivelling the seat. Accidental contact with the controls could cause the tractor or implement to operate.

Adjust the armrests

To lower the armrest through 30°, press the armrest tilt adjuster (K) into the armrest. Knob (J) allows the height of the armrests to be adjusted to any of 5 positions.

OU12401,00019A4 -19-03JUN08-2/2
