Attach Three-Point Hitch Mounted and Drawn Implements

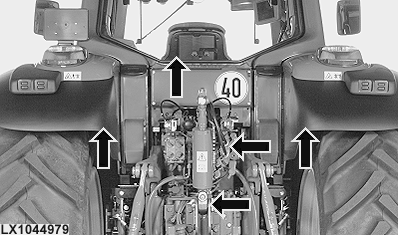

Be sure not to damage exposed parts of cab (see arrows) or other tractor components when attaching three-point hitch mounted or drawn implements.

CAUTION: Do not stand between tractor and implement unless park and handbrake are both applied firmly.

IMPORTANT: When attaching three-point hitch mounted or drawn implements for the first time, conduct a trial to ensure that implement will not damage cab or other tractor components in any position. With hitch-mounted implements, pay attention to the highest lift position; with drawn implements, be careful when turning sharply.

Also comply with instructions under "Hydraulic Center Link", where applicable.

If a swinging drawbar is installed, set it in the front, short position. The swinging drawbar can also be swung to the right or left and secured there.

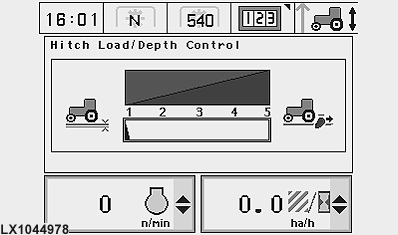

When attaching an implement, first make sure that load/depth is set to "1".

OU12401,00019AB -19-17MAR08-1/1
