Load/Depth Adjustment

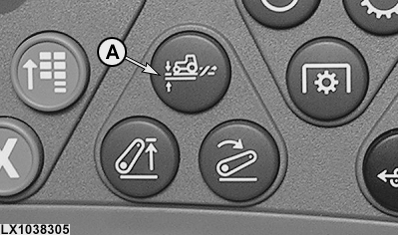

Button (A) is used to select this screen. There, you can set the hitch between load control and depth control. The positions have the following meanings:

  • 1 = Depth control
  • over 1 but less than 5 = Mixed control
  • 5 = Load control

causym CAUTION: Before connecting implements to the three-point hitch, position 1 (depth control) must be selected to prevent unintentional raising or lowering of the hitch.



LX1038305
LX1044978

OU12401,00019F8 -19-23JUN08-1/4

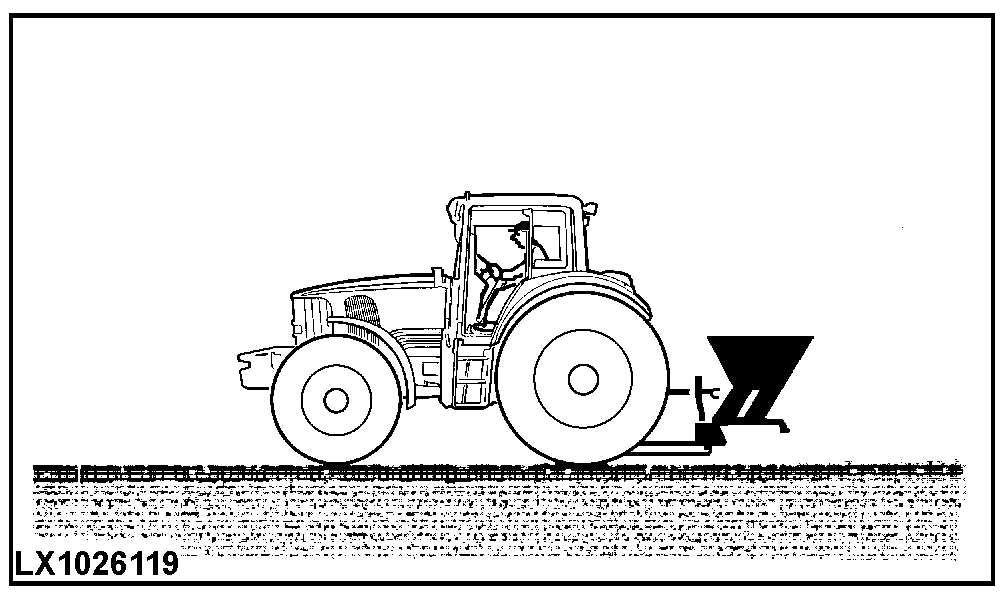

1 Depth Control

With load/depth control in this position, the implement is held at the selected position.

LX1026119

OU12401,00019F8 -19-23JUN08-2/4

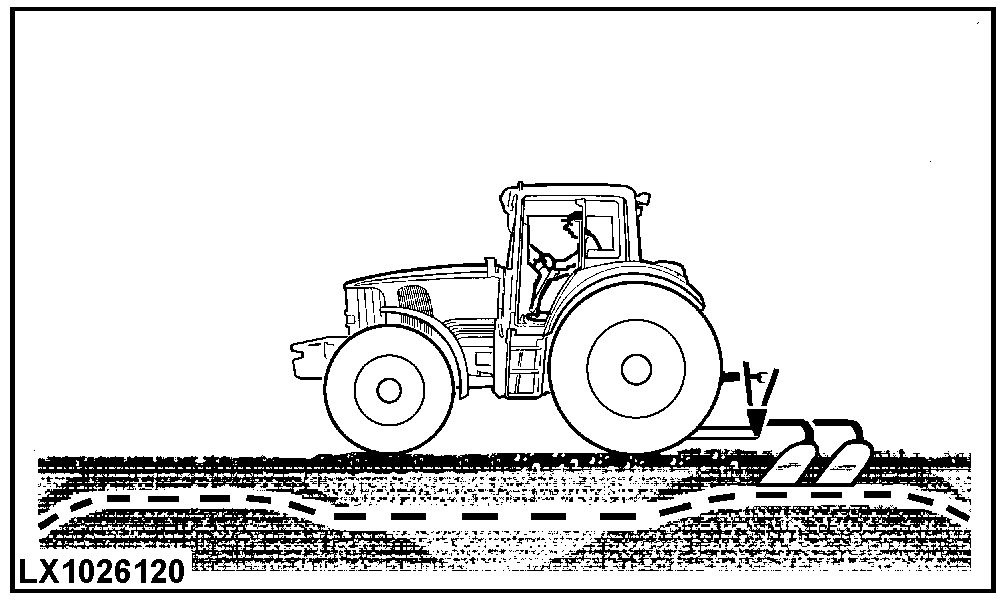

Over 1 but less than 5 Mixed Control

The intermediate positions of the load/depth control allow the effects of depth control and/or load control to be infinitely varied as the ground conditions require.

LX1026120

OU12401,00019F8 -19-23JUN08-3/4

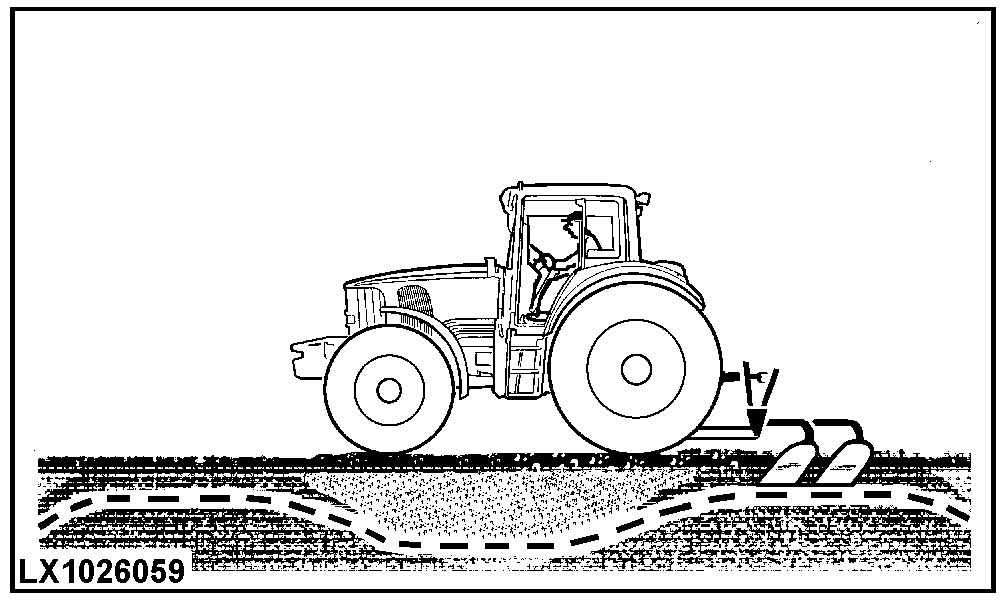

5 Load Control

With load/depth control in this position, the implement is raised as resistance (soil density) increases and lowered as resistance decreases, thus maintaining the preselected load.

LX1026059
