Power Outlet Sockets (If Equipped)

Signal socket

Terminal Wire color Description
1 Red Speed determined by radar
2 Brown Speed of wheels
3 Orange Rear PTO speed
4 - -
5 - -
6 Blue Power supply
7 Black Ground



The 7-terminal signal socket (A) is protected by a 30-amp fuse.



ISOBUS socket in cab

An implement monitor meeting ISO Standard 11783 may be connected to socket (C).



3-terminal power outlet socket

Terminal 15/30 of 3-terminal power outlet socket (B) is protected by a 30-amp fuse, and terminal 82 by a 10-amp fuse. Terminal 31 is ground.

Turn key in main (key) switch to the right to supply power to terminal 82. Terminal 15/30 is supplied with power even when the ignition is switched off.




A-Signal socket
B-3-terminal power outlet socket
C-ISOBUS socket

LX1036245

Signal socket in lateral console

LX1036246

3-terminal socket in rear cab wall

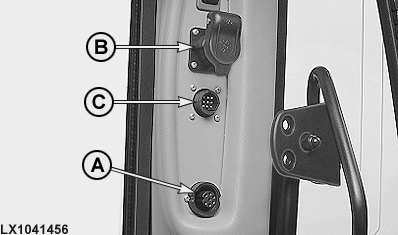

LX1041456

Sockets in cab frame

OU12401,0001B92 -19-29APR09-1/2

Routing the cables

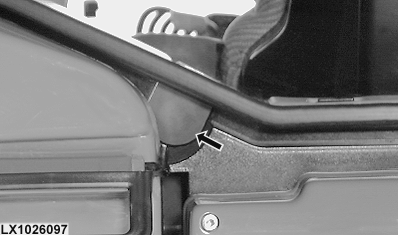

The rear window of the cab is provided with two openings, allowing the cables to be routed. Open the window and take out the rubber stoppers. Cut the rubber stoppers at the incisions provided to enable the cables to be routed. Connect the plugs, insert the rubber stoppers and close the window.

LX1026097

OU12401,0001B92 -19-29APR09-2/2
