Starting with a Booster Battery

CAUTION: Gas given off by batteries is highly explosive. Keep sparks and flames away from batteries. Be sure polarity is correct before making connections: ground cable to negative pole and starter cable to positive pole of battery.

Reversed polarity will damage the electrical system. Always connect ground cable to negative pole last.

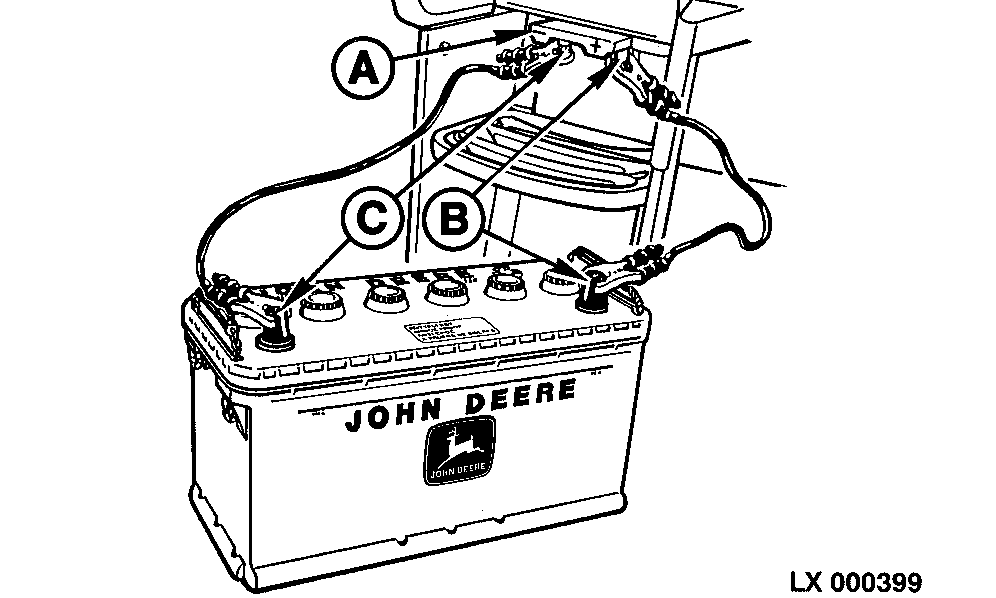

The tractor is equipped with connections to allow an additional 12-volt battery to be brought into the circuit. Lift up cover (A), and connect positive poles (B) before connecting negative poles (C).

OULXE59,001071C -19-18FEB05-1/1
