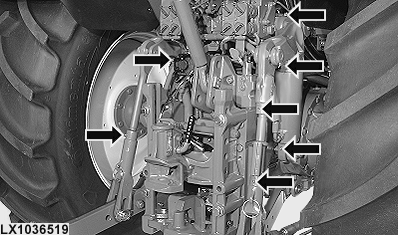

Lubricating the Three-Point Hitch

Lubricate grease fittings with several strokes of grease gun. Use John Deere multi-purpose grease.

NOTE: The grease fittings on the second lift cylinder and second lift link are not visible in this illustration.

OULXE59,0010847 -19-18DEC05-1/1
