After the First 4 and 8 Hours of Operation

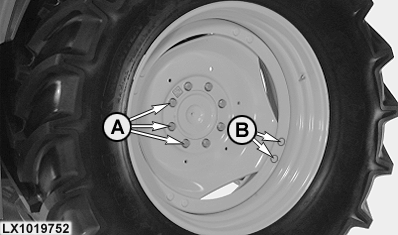

Tighten rear wheel retaining bolts/nuts


A-500 N·m (370 lb-ft)
B-250 N·m (185 lb-ft)

LX1019752

OULXE59,001084D -19-28JAN06-1/2

Tighten front wheel retaining bolts/nuts


A-300 N·m (220 lb-ft)
B-250 N·m (185 lb-ft)

LX1036254

OULXE59,001084D -19-28JAN06-2/2
