Engaging Creeper Transmission

To engage or disengage creeper transmission, depress clutch pedal.

Select creeper as follows:

1. Select range.
2. Engage creeper.

Never engage creeper transmission with engine speed higher than 1000 rpm.

IMPORTANT: Do not use creeper transmission when working with implements that penetrate the soil and require high tractive force.

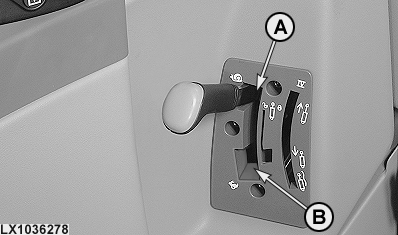

A-Creeper speed
B-High speed

OULXE59,0010852 -19-18FEB06-1/1
