Fine Adjustment of Rear PTO Speed (Shiftable PTO)

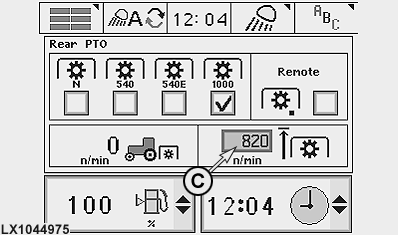

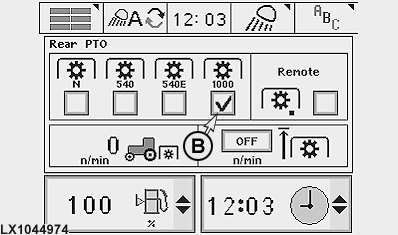

Press button (A) and select the desired standard speed of rear PTO (B) on the screen (e.g. 1000). If desired, select the exact speed in cell (C).

When the PTO is switched on, engine speed is limited so that set PTO speed is not exceeded even at full throttle. When the PTO is switched off, the engine can be operated over its full speed range again.

NOTE: When standard speed is changed, cell (C) must read "OFF".

If an engine speed limit is set on the transmission settings page (see "Transmission Settings" in the "Operating the Tractor" section), the lower limit applies.

A-PTO button
B-Standard speed of rear PTO
C-Cell for speed

OULXE59,001095F -19-03MAR08-1/1
