Operating the PTO by Fender Control

The rear PTO is engaged and disengaged as described above.

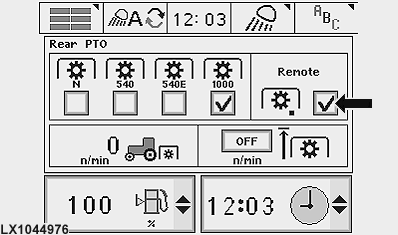

If the PTO is to be operated from outside the cab, this function must be selected first . Do this by pressing PTO button (A) and selecting fender control at the cell on the screen. Then switch on the rear PTO at switch (B) (PTO does not turn yet; hazard warning lights flash). Once this has been done, the rear PTO can be switched on from outside the cab as follows:

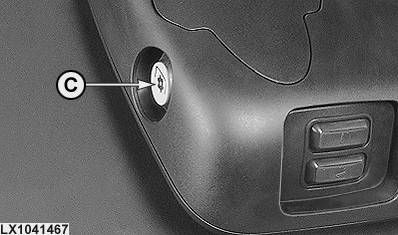

Press control switch (C) on the fender. The rear PTO starts to turn (the turn-signal lights stop flashing and stay on all the time).

Release fender control switch (C) within less than 4 seconds. The rear PTO stops (the hazard warning lights flash).

If the rear PTO is to be operated for a lengthy period, press remote-control switch (C) for at least 4 seconds until the turn-signal lights (which were on all the time) go out.

To switch off the rear PTO, actuate fender control switch (C) -- the hazard warning lights flash -- or press the rear PTO switch (B) in the cab.

NOTE: If the rear PTO is switched on in the cab, the rear PTO may be switched off at fender control switch (C), but it cannot be switched on again without re-entering the cab.

A-PTO button
B-Switch for rear PTO
C-PTO fender control switch

OULXE59,0010960 -19-27FEB08-1/1
